| DIM | ITEM | DIMENSIONAL STANDARDS (FEET) | |||||
|---|---|---|---|---|---|---|---|
| VISUAL RUNWAY | NON - PRECISION INSTRUMENT RUNWAY |
PRECISION INSTRUMENT RUNWAY PIR |
|||||
| A | B | A | B | ||||
| C | D | ||||||
| A | WIDTH OF PRIMARY SURFACE AND APPROACH SURFACE WIDTH AT INNER END | 250 | 500 | 500 | 500 | 1,000 | 1,000 |
| B | RADIUS OF HORIZONTAL SURFACE | 5,000 | 5,000 | 5,000 | 10,000 | 10,000 | 10,000 |
| VISUAL APPROACH |
NON - PRECISION INSTRUMENT APPROACH |
PRECISION INSTRUMENT APPROACH |
|||||
| A | B | ||||||
| A | B | C | D | ||||
| C | APPROACH SURFACE WIDTH AT END | 1,250 | 1,500 | 2,000 | 3,500 | 4,000 | 16,000 |
| D | APPROACH SURFACE LENGTH | 5,000 | 5,000 | 5,000 | 10,000 | 10,000 | * |
| E | APPROACH SLOPE | 20:1 | 20:1 | 20:1 | 34:1 | 34:1 | * |
Textual description of the FAR Part-77 surfaces
3D-Diagram of FAR Part-77 surfaces

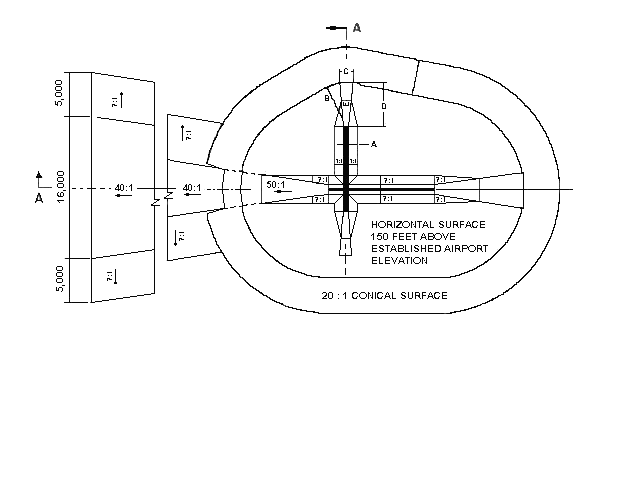

Plan view of FAR Part-77 surfaces
