Status of Phase 1
Status of Phase 1 - Meetings Held at the Port of Oakland
There have been three meetings (July 15, October 23, and December 20, 1996) hosted by the
Port of Oakland and NOS to discuss the real-time positioning of marine vessels project. All
were held at the office of David A. Adams, Chief Wharfinger, Maritime Operations, Port of
Oakland, California. The participants represented several interested groups. They included
Federal agencies (Waterways Experiment Station/U.S. Army Corps of Engineers, USCG,
NOS/NOAA, Geodetic Survey of Canada), port and harbor authorities, various commercial
carriers and shippers, San Francisco Bar Pilots, San Francisco Marine Exchange, GPS and
communication manufacturers, and private surveyors. These meetings were very helpful to NOS
to obtain a good understanding of users' needs and for users to obtain a better understanding of
what the new technology can do for them. A task force, consisting of members that represent
the various groups, is being established to document the cost/benefit of implementing the real-time positioning system in the San Francisco Bay area.
Status of Phase 1 - Results of Test on Coast Guard Buoy Tender
In support of the project, on December 3-4, 1996, CS (Barry Gallagher), NGS (Don D'Onofrio
and Curt Smith), Trimble Navigation Ltd. (Chuck Coiner), and USCG (Officers and crew of the
buoy tender CGC BUTTONWOOD) performed GPS tests on the BUTTONWOOD. GPS data
were used to compute the vessel's squat (dynamic draft), roll, pitch, and heading. During the
test, five receivers continually collected data; one at a base station on the USCG pier on Yerba
Buena Island, where the BUTTONWOOD docks, and four on the ship, two on the stern and two
on the bow. CS installed a heave, pitch, and roll device in the engine room of the ship. Some
general information about the CGS BUTTONWOOD is listed below:
General Information about CGC BUTTONWOOD |
Length Overall |
180 Feet |
Beam Molded |
37 Feet |
Draft Mean |
12 Feet |
Displacement |
935 Tons |
Propeller Diameter |
8.5 Feet |
NGS processed the GPS data and computed the vessel's squat and 3-D attitude (roll, pitch, and
heading). CS then correlated NGS' GPS results with results obtained from the heave, pitch, and
roll device.

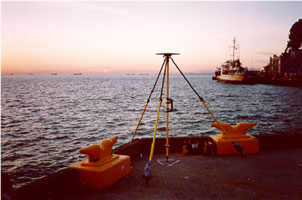

As previously stated one receiver was set over a survey monument located at the USCG facility

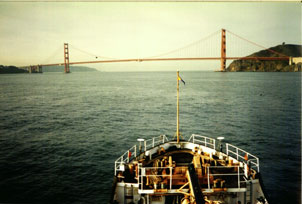

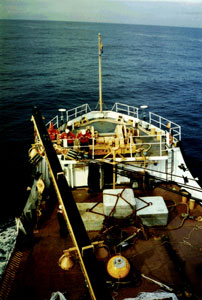

on Yerba Buena Island (figure 1). The monument's designation is BUOY. Two GPS antennas

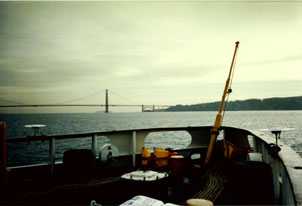

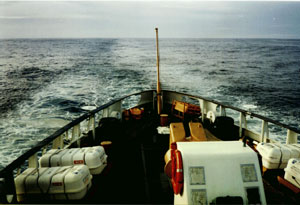

were placed on the bow of the vessel (figures 2 and 3) and two antennas were placed on the stern of the ship (figures 4 and 5). All receivers were Trimble SSI's and the antennas were Trimble
Compact L1/L2 with Ground Plane. |
Figure 1 |
Figure 2 |
Figure 3 |
Figure 4 |
Figure 5 |
The test involved 2 days of observations on the CGC BUTTONWOOD. Information about the 2

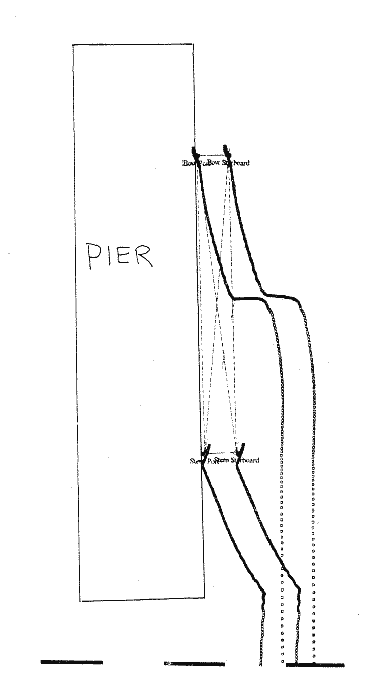

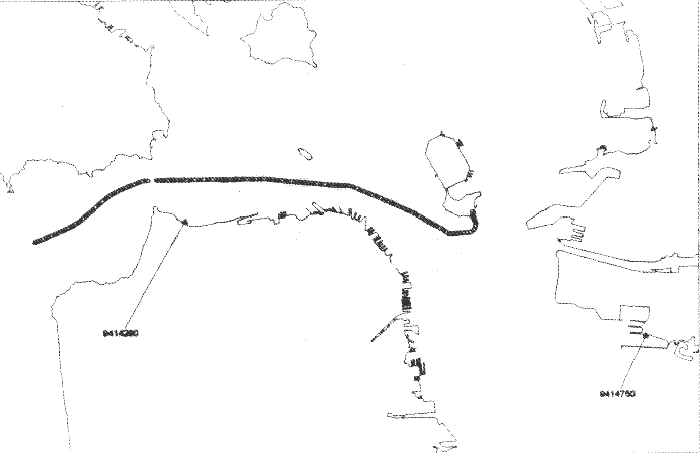

days is listed below. Figure 6 depicts the ship's track on day 1 from the Golden Gate Bridge to
the USCG facility on Yerba Buena Island. Figure 7 depicts the ship docking at Yerba Buena
Island.
GPS OBSERVATION SCENARIO FOR DAY 1
- 67 FILES; 42,364,464 BYTES
- USCG BUOY TENDER CGC "BUTTONWOOD," DAY 1 GPS OBSERVATIONS.
- 0600 SET UP BASE STATION OVER CORPS OF ENGINEERS SURVEY DISK "BUOY" ON OUTSIDE CORNER OF CONCRETE PIER TO SMALLER USCG VESSELS.
- 0730 DEPART PIER ABOARD BUTTONWOOD; SET UP GPS ANTENNA MOUNTS ON FOUR CORNERS OF VESSEL, DESIGNATED AS:
- SS = STERN STARBOARD
- SP = STERN PORT
- BS = BOW STARBOARD
- BP = BOW PORT
- 0800 - 0900 BEGIN TRACKING ALONG OUTBOUND MAIN SHIP CHANNEL:
- SS53-338-0
- SP26-338-0 KINEMATIC MODE, ROVING, 1-SECOND INTERVALS
- BS06-338-0
- BP14-338-0
- 0930 TERMINATE TRACKING, DOWNLOAD DATA, THEN DELETE DATA FROM RECEIVERS.
- 1300 BEGIN TRACKING AS POSITIONING TO SET BUOY:
- WAVE-338-0 KINEMATIC MODE, ROVING, 1-SECOND INTERVALS.
- WVST-338-0 STATIC MODE.
- 1400 BUOY SET APPROXIMATELY 55 MILES FROM SAN FRANCISCO BAY.
- 1405 TERMINATE TRACKING, DOWNLOAD DATA, THEN DELETE DATA FROM RECEIVERS.
- 1830 BEGIN TRACKING OUTSIDE OF GOLDEN GATE BRIDGE ALONG INBOUND MAIN SHIP
CHANNEL:
- SS53-339-0
- SP26-339-0 KINEMATIC MODE, ROVING, 1-SECOND INTERVALS
- BS06-339-0
- BP14-339-0.
- 2000 TERMINATE TRACKING.
- 2015 BEGIN TRACKING STATIC SHIP AT REST AT USCG PIER:
- SS53-339-1
- SP26-339-1
- BS06-339-1
- BP14-339-1.
- 2030 TERMINATE TRACKING, DOWN LOAD SS RECEIVER, TEAR DOWN OTHER RECEIVERS.
- 2035 BEGIN TRACKING FOR TIDAL MONITORING AT SS AND BASE STATION:
- SS53-339-N STATIC MODE, 15-SECOND INTERVALS
- BUOY-339-N.
- RECEIVER AT SS TRACKED FOR 5 HRS 23 MIN, THEN BECAME FULL AS OLD DATA WERE NOT PREVIOUSLY DELETED.
GPS OBSERVATION SCENARIO FOR DAY 2
- 73 FILES; 24,991,681 BYTES
- USCG BUOY TENDER CGC "BUTTONWOOD," DAY 2 GPS OBSERVATIONS.
- 0630 SET UP BASE STATION OVER CORPS OF ENGINEERS SURVEY DISK "BUOY" ON OUTSIDE CORNER OF CONCRETE PIER TO SMALLER USCG VESSELS:
- BUOY-339-0 STATIC MODE, 1-SECOND INTERVALS.
- 0700 SET UP ALL RECEIVERS ABOARD SHIP. GPS ANTENNA MOUNTS ON FOUR CORNERS OF VESSEL, DESIGNATED AS:
- SS = STERN STARBOARD
- SP = STERN PORT
- BS = BOW STARBOARD
- BP = BOW PORT.
- 0715 BEGIN TRACKING, STATIC SESSION ALL STATIONS FOR SHIP AT REST AT PIER:
- SS53-339-2
- SP26-339-2 FAST-STATIC MODE, STOPPED, 1-SECOND INTERVALS
- BS06-339-2
- BP14-339-2.
- 0730 DEPART PIER ABOARD BUTTONWOOD; BEGIN TRACKING IN FAST STATIC MODE, MOVING, THEN TERMINATE AND BEGIN AGAIN IN KINEMATIC MODE ALONG OUTBOUND DEEP WATER SHIP CHANNEL TO BEYOND GOLDEN GATE BRIDGE:
- SS53-338-3
- SP26-338-3 KINEMATIC MODE, ROVING, 1-SECOND INTERVALS
- BS14-338-3
- BP06-338-3.
- 0830 TERMINATE TRACKING, DOWNLOAD DATA, THEN DELETE DATA FROM RECEIVERS.
- 0845 BEGIN TRACKING OUTSIDE OF GOLDEN GATE BRIDGE ALONG INBOUND MAIN SHIP
CHANNEL ALL THE WAY TO NARROW, SHALLOW PORT OF OAKLAND OUTER HARBOR
CHANNEL:
- SS53-339-4
- SP26-339-4 KINEMATIC MODE, ROVING, 1-SECOND INTERVALS
- BS14-339-X
- BP06-339-X (SESSION X CUT SHORT TO DELETE DATA FROM BOW RECEIVERS)
- BS14-339-4
- BP06-339-4.
- 0930 TERMINATE TRACKING.
- 0945 BEGIN TRACKING FOR SQUAT TEST; SHALLOW WATER, 20 M DEEP, TOWARDS SOUTH BAY ALONG ALAMEDA NAVAL AIR STATION AT FAST SPEED, THEN TURN AROUND AND RETURN ALONG SAME ROUTE AT SLOW SPEED AND RETURN TO USCG PIER:
- SS53-339-5
- SP26-339-5
- BS14-339-5
- BP06-339-5.
- 1030 TERMINATE TRACKING, TEAR DOWN ALL RECEIVERS.
